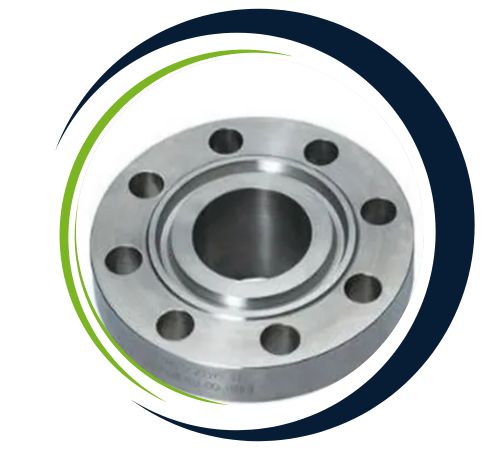

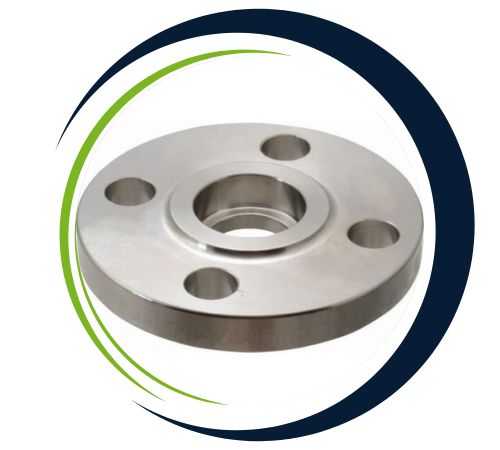

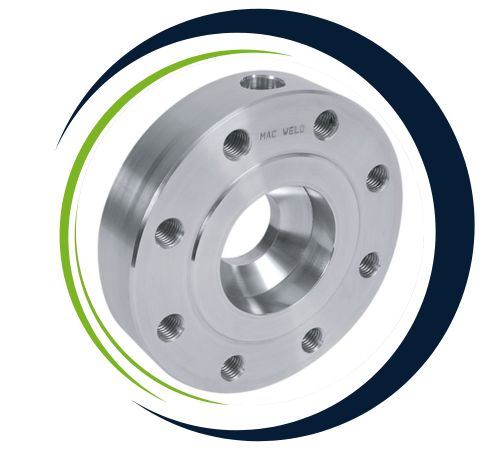

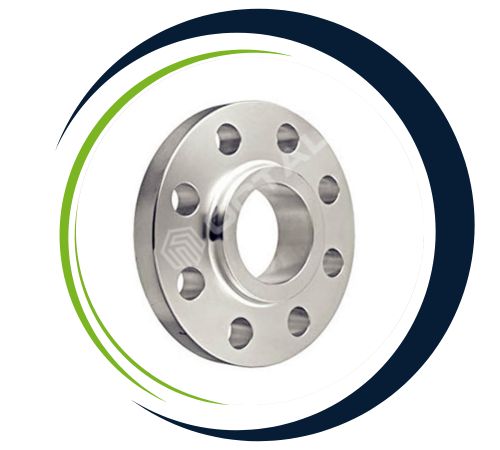

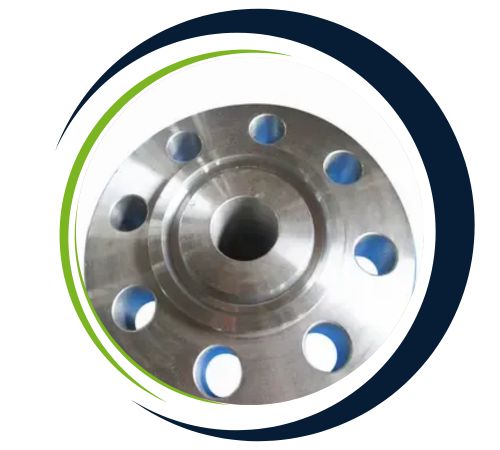

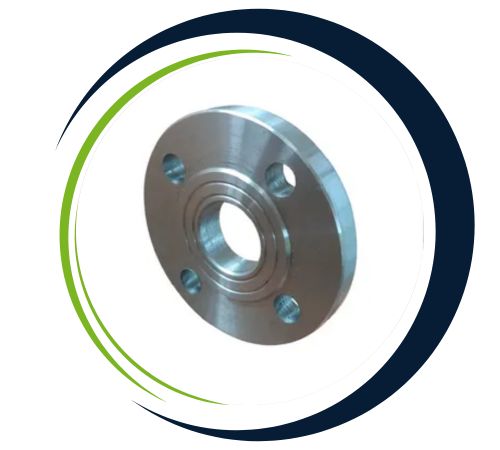

Khawla Flanges, based in Muscat, Oman, stands out as a top manufacturer and supplier of high-quality Alloy 20 RTJ Flanges, designed to meet the rigorous demands of various industries. With a strong focus on precision, reliability, and adherence to international quality standards, the company produces flanges that excel in both corrosion resistance and overall performance. Thanks to their advanced manufacturing capabilities and a talented workforce, Khawla Flanges plays a vital role in sectors like chemical processing, petrochemicals, pharmaceuticals, and marine applications. Their Alloy 20 RTJ Flanges are specifically engineered to provide secure, leak-proof seals in high-pressure situations, making them a go-to choice for challenging piping needs.
Alloy 20 RTJ Flanges are made from a high-performance nickel-iron-chromium alloy, enhanced with copper and molybdenum to offer exceptional resistance to sulfuric acid and harsh chemical environments. This alloy boasts impressive mechanical properties, including high tensile and yield strength, improved toughness, and strong resistance to stress-corrosion cracking. Additionally, these flanges are easy to fabricate and maintain their structural integrity even at elevated temperatures. Their well-balanced chemical composition guarantees reliable performance in corrosive and high-pressure settings, making Alloy 20 a top choice for critical applications that demand durability and long-lasting stability. Alloy 20 RTJ flanges, consisting mainly of nickel (32-38%), chromium (19-21%) and molybdenum (2-3%) perform well in resisting sulfuric acid and chloride stress corrosion cracking. Due to a tensile strength of approximately 550 MPa and yield strength of 240 MPa, they exhibit strong performance in high-stress operations. They have corrosion resistance and durability that makes them suitable for extreme environments, especially in petrochemical, chemical and pharmaceutical processes. These flanges minimize maintenance costs provide improved longevity and are compatible with demanding applications that require top-level resistance and stability.
| Specification | ASTM B462 / ASME SB462 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, Alloy 20-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B462 F316 Alloy 20 Flanges |
| Grades | Alloy 20 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of Alloy 20 RTJ Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy 20 RTJ Flanges find extensive use in industries that deal with highly corrosive fluids and require strong, leak-proof connections. They are particularly well-suited for sulfuric acid processing, chemical and petrochemical facilities, pharmaceutical equipment, and food processing operations where hygiene and corrosion resistance are paramount. Their Ring Type Joint design ensures excellent sealing capabilities in high-pressure and high-temperature conditions, making them ideal for heat exchangers, reactors, storage tanks, and piping systems.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
| ASME/ANSI B 16.5 | RTJ Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | RTJ Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | RTJ Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Alloy 20 RTJ Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
