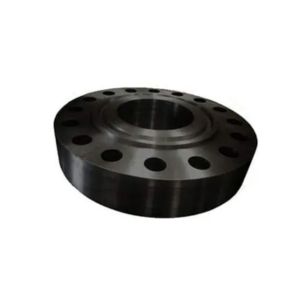

Khawla Flanges stands out as a top manufacturer and supplier located in Muscat, Oman, focusing on high-quality Carbon Steel RTJ (Ring Type Joint) flanges tailored for high-pressure and critical industrial needs. Known for their precision engineering and reliability, the company adheres to international standards, providing durable flange solutions for the oil and gas, petrochemical, power generation, and engineering sectors. With state-of-the-art production facilities and a dedication to quality, Khawla Flanges delivers custom RTJ flanges that guarantee leak-proof connections and long-lasting performance. Their strong focus on customer satisfaction has made them a go-to supplier throughout Oman and the broader GCC region.
Carbon Steel RTJ flanges are generally crafted from high-strength carbon steel grades like ASTM A105, A350 LF2, and A694. These materials are carefully formulated with specific amounts of carbon, manganese, silicon, and trace elements to boost toughness and hardness. Carbon steel RTJ flanges boast impressive mechanical properties, including high tensile strength, superior yield strength, and outstanding performance in high-pressure and elevated temperature situations. Their sturdy design offers excellent fatigue resistance, making them perfect for challenging environments. Plus, they maintain good machinability and weldability, ensuring secure and reliable sealing in critical pipeline systems.
| Specification | ASTM A694 / ASME SA694 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A694 F316 Carbon Steel Flanges |
| Grades | Carbon Steel A105, IS2062, LF2, F42, A36, F52, F56, F65, F60, F70, F80 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Carbon Steel RTJ flanges find extensive use in industries that demand secure, leak-proof connections under high pressure and harsh operating conditions. They’re commonly found in oil and gas pipelines, refineries, petrochemical plants, and power generation facilities. Thanks to their ring-type joint design, they provide a metal-to-metal seal, making them ideal for high-temperature and high-stress environments. These flanges are frequently used in drilling operations, wellhead equipment, subsea systems, and high-pressure steam applications, proving their versatility and reliability in various demanding settings.
Carbon steel RTJ (ring type joint) flanges are mostly employed at high pressures and temperatures because of their tight sealing qualities They are most suitable for use in the oil and gas industry, petrochemical plants, power generation and chemical a is used in an RTJ system that places a metal ring on the flange face for a robust leakproof seal, hence making these flanges fit to withstand harsh conditions, such as extreme pressures and temperatures hard included Carbon steel RTJ flanges are very resistant, mostly in pipelines, applied in reactors, and other key systems.
| ASME/ANSI B 16.5 | RTJ Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | RTJ Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | RTJ Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Carbon Steel RTJ Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
