Khawla Flanges is a well-respected manufacturer and supplier of top-notch DIN 2527 PN16 Blind Flanges, proudly based in Muscat, Oman. The company has built a solid reputation for its precision engineering, durable products, and commitment to international standards. They cater to a variety of industries, including oil and gas, water treatment, chemical processing, HVAC, and industrial piping. By leveraging advanced manufacturing technologies, Khawla Flanges produces reliable blind flanges that ensure secure sealing and effective system isolation. With a strong emphasis on customer satisfaction, timely delivery, and competitive pricing, they have established themselves as a trusted name throughout Oman and the broader Gulf region for dependable DIN-standard flange solutions.

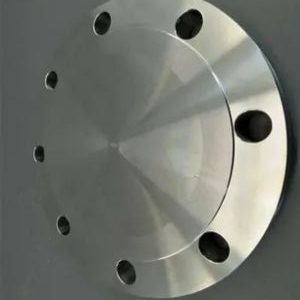

DIN 2527 PN16 Blind Flanges are generally made from carbon steel, stainless steel, or alloy steel, depending on the specific needs of the system. Their composition often includes elements like carbon, manganese, silicon, chromium, nickel, and molybdenum, which enhance their strength, corrosion resistance, and overall durability. Mechanically, these flanges provide moderate to high tensile and yield strength, making them suitable for PN16 pressure ratings. They excel in sealing capability, structural integrity, and resistance to thermal stress. Designed to handle internal pressure while securely closing pipeline ends, these flanges guarantee long-lasting reliability across various industrial settings.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||
|---|---|---|---|---|---|---|---|
| D | b | k | Number | Thread | d2 | Shape B | |
| Kg | |||||||
| 15 | 95 | 14 | 65 | 4 | M 12 | 14 | 0,72 |
| 20 | 105 | 16 | 75 | 1,01 | |||
| 25 | 115 | 16 | 85 | 1,23 | |||
| 32 | 140 | 16 | 100 | M 16 | 18 | 1,8 | |
| 40 | 150 | 16 | 110 | 2,09 | |||
| 50 | 165 | 18 | 125 | 2,88 | |||
| 65 | 185 | 18 | 145 | 3,66 | |||
| 80 | 200 | 20 | 160 | 8 | 4,77 | ||
| 100 | 220 | 20 | 180 | 5,65 | |||
| 125 | 250 | 22 | 210 | 8,42 | |||
| 150 | 285 | 22 | 240 | M 20 | 22 | 10,4 | |
| 200 | 340 | 24 | 295 | 12 | 16,1 | ||
| 250 | 405 | 26 | 355 | M 24 | 26 | 24,9 | |
| 300 | 460 | 28 | 410 | 35,1 | |||
| 350 | 520 | 30 | 470 | 16 | 47,8 | ||
| 400 | 580 | 32 | 525 | M 27 | 30 | 63,5 | |
| 500 | 715 | 36 | 650 | 20 | M 30 | 33 | 102 |
Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of DIN 2527 PN16 Blind Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2527 PN16 Blind Flanges find extensive use in piping systems where closing pipe ends, isolating sections for maintenance, or testing internal pressure is essential. They are commonly found in water supply systems, wastewater treatment facilities, and HVAC pipelines. In the oil and gas and petrochemical industries, they play a crucial role in high-pressure lines, storage tanks, and processing units, providing secure sealing. Industrial facilities also rely on them for steam, air, and fluid distribution systems. Their robust design and dependable pressure-handling capabilities make them a go-to choice for many applications.
Yes, we offer custom sizes for DIN 2527 PN16 Blind Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
