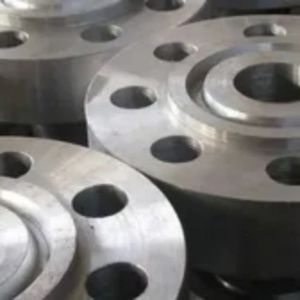

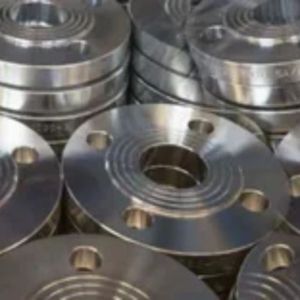

Khawla Flanges, based in Muscat, Oman, stands out as a reliable manufacturer and supplier of high-quality DIN 2573 PN6 Slip-On Flanges. Known for their precision engineering and commitment to international standards, Khawla Flanges provides products that guarantee dependable connections and durability in moderate pressure piping systems. These flanges are designed for straightforward installation, alignment, and secure pipe connections, making them perfect for a variety of industrial applications. Catering to sectors like oil and gas, water treatment, chemical processing, and power generation, Khawla Flanges combines top-notch materials, cutting-edge manufacturing methods, and outstanding customer service to uphold the highest industry standards.
Typically crafted from carbon steel, stainless steel, or alloy steel, DIN 2573 PN6 Slip-On Flanges offer excellent corrosion resistance, durability, and long-lasting reliability. Built to handle PN6 pressure ratings, these flanges boast a tensile strength ranging from 400 to 550 MPa, a yield strength of 250 MPa, and an elongation of 20 to 30%. This composition enables them to endure moderate pressure and temperature conditions while ensuring leak-proof connections. The mechanical properties of DIN 2573 PN6 Slip-On Flanges make them ideal for industrial piping systems that demand secure, durable, and efficient flow control solutions.
Khawla Flanges, a leading supplier in Muscat, OMAN, offers an extensive selection of DIN 2573 PN6 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
| Germany standard flange DIN 2573 for soldering or welding Nominal Pressure 6 | |||||||||||
| Pipe | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||||
| Rated Diameter | d1 | d5 | D | b | c | k | Holes | Thread | d2 | Kg | |
| ISO Series 1 | DIN Series 2 | ||||||||||
| 15 | – | 20 | 21 | 80 | 12 | 5 | 55 | 4 | M 10 | 11 | 0,41 |
| 21,3 | – | 22 | |||||||||
| 20 | – | 25 | 26 | 90 | 14 | 5 | 65 | 4 | M 10 | 11 | 0,60 |
| 26,9 | – | 27,6 | |||||||||
| 25 | – | 30 | 31 | 100 | 14 | 5 | 75 | 4 | M 10 | 11 | 0,74 |
| 33,7 | – | 34,4 | |||||||||
| 32 | – | 38 | 39 | 120 | 16 | 5 | 90 | 4 | M 12 | 14 | 1,19 |
| 42,4 | – | 43,1 | |||||||||
| 40 | – | 44,5 | 45,5 | 130 | 16 | 5 | 100 | 4 | M 12 | 14 | 1,39 |
| 48,3 | – | 49 | |||||||||
| 50 | – | 57 | 58,1 | 140 | 16 | 6 | 110 | 4 | M 12 | 14 | 1,53 |
| 60,3 | – | 61,1 | |||||||||
| 65 | 76,1 | – | 77,1 | 160 | 16 | 6 | 130 | 4 | M 12 | 14 | 1,89 |
| 80 | 88,9 | – | 90,3 | 190 | 18 | 7 | 150 | 4 | M 16 | 18 | 2,98 |
| 100 | – | 108 | 109,6 | 210 | 18 | 7 | 170 | 4 | M 16 | 18 | 3,46 |
| 114,3 | – | 115,9 | |||||||||
| 125 | – | 133 | 134,8 | 240 | 20 | 7 | 200 | 8 | M 16 | 18 | 4,60 |
| 139,7 | – | 141,6 | |||||||||
| 150 | – | 159 | 161,1 | 265 | 20 | 7 | 225 | 8 | M 16 | 18 | 5,22 |
| 168,3 | – | 170,5 | |||||||||
| 200 | 219,1 | – | 221,8 | 320 | 22 | 7 | 280 | 8 | M 16 | 18 | 7,15 |
| 250 | – | 267 | 270,2 | 375 | 24 | 7 | 335 | 12 | M 16 | 18 | 9,61 |
| 273 | – | 276,2 | |||||||||
| 300 | 323,9 | – | 327,6 | 440 | 24 | 7 | 395 | 12 | M 20 | 22 | 12,60 |
| 350 | 355,6 | – | 359,7 | 490 | 26 | 7 | 445 | 12 | M 20 | 22 | 15,60 |
| – | 368 | 372,2 | |||||||||
| 400 | 406,4 | – | 411 | 540 | 28 | 7 | 495 | 16 | M 20 | 22 | 18,40 |
| – | 419 | 423,7 | |||||||||
| (450)* | 457 | – | 462,5 | 595 | 30 | 7 | 550 | 16 | M 20 | 22 | 21,40 |
| 500 | 508 | – | 531,6 | 645 | 30 | 7 | 600 | 20 | M 20 | 22 | 24,60 |
DIN 2573 PN6 Slip-On Flanges are commonly utilized for connecting pipes, valves, pumps, and other equipment in moderate-pressure industrial systems. Their slip-on design facilitates easy alignment, installation, and maintenance, making them a great choice for both repair and new piping projects. You’ll find these flanges in various applications, including water treatment facilities, chemical processing plants, power generation, oil and gas pipelines, and shipbuilding. They provide reliable sealing and connection solutions, ensuring efficient operation across a range of industrial environments.
Yes, we offer custom sizes for DIN 2573 PN6 Slip On Flanges to meet specific project needs. Our team at Khawla Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@khawlaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
